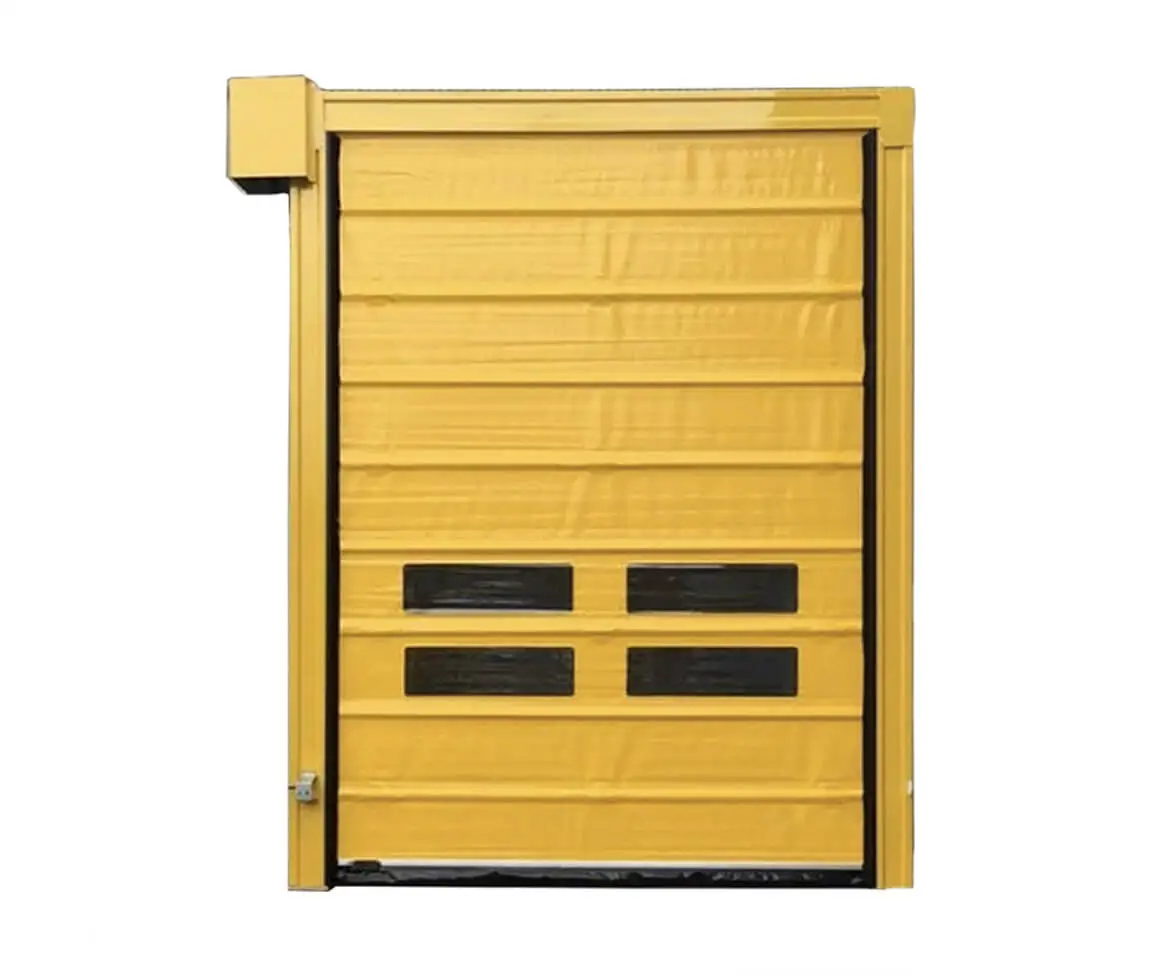

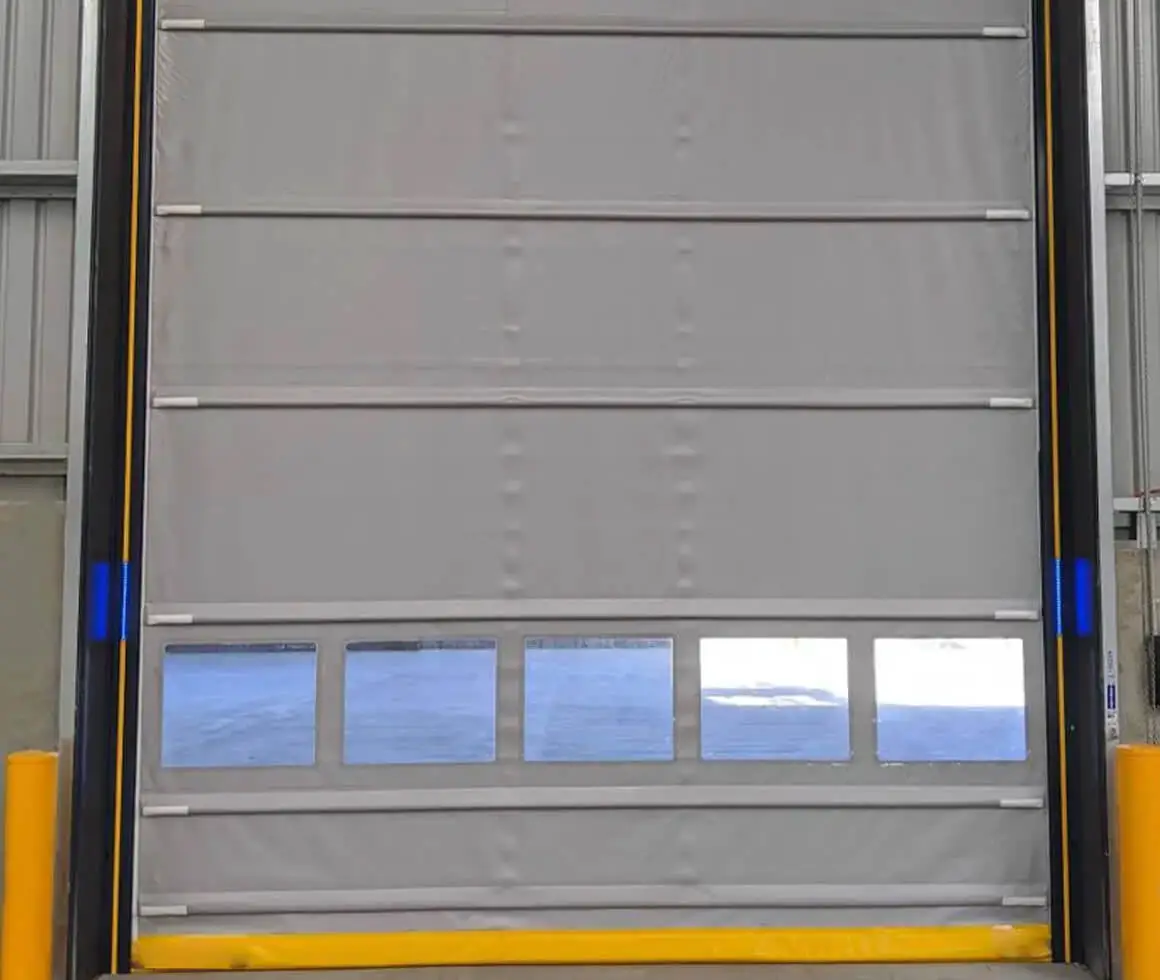

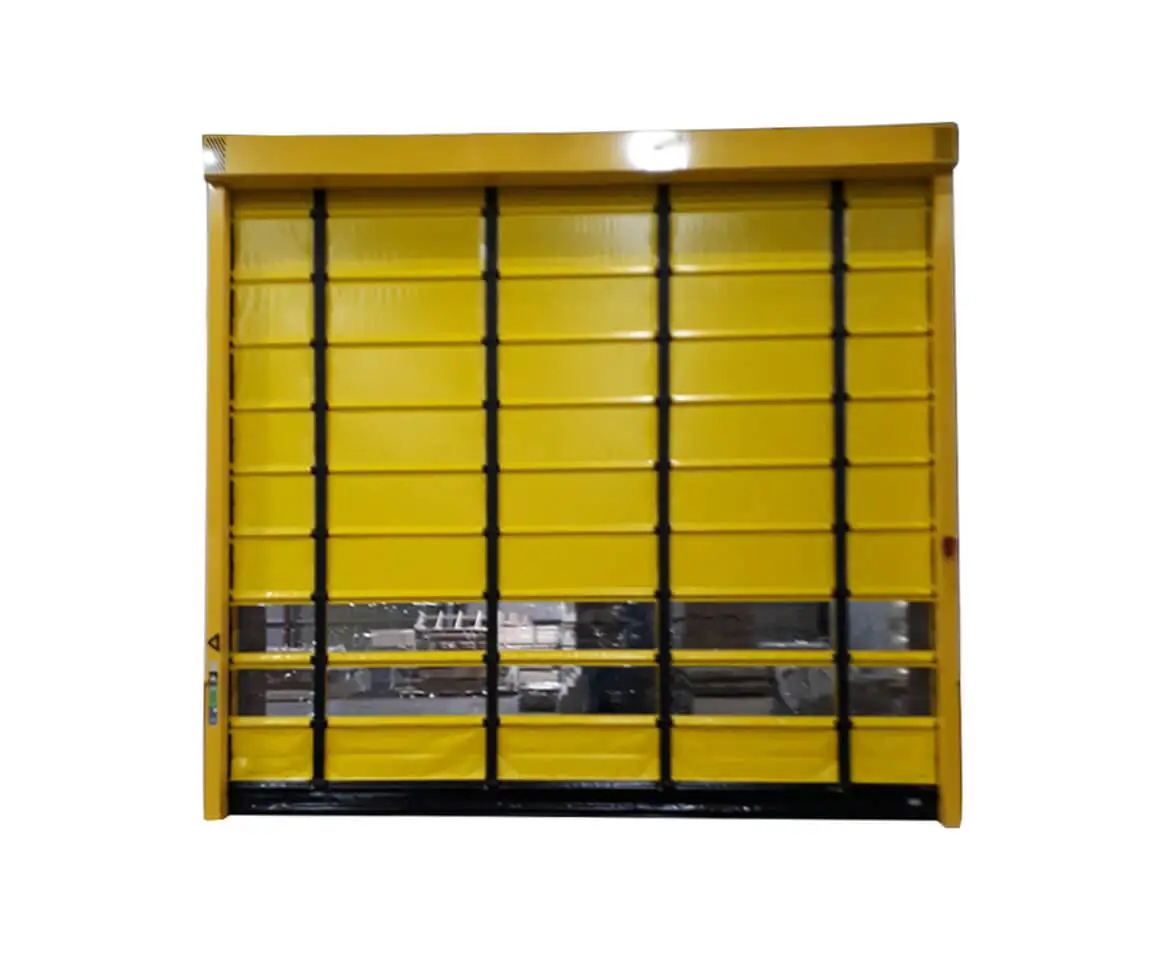

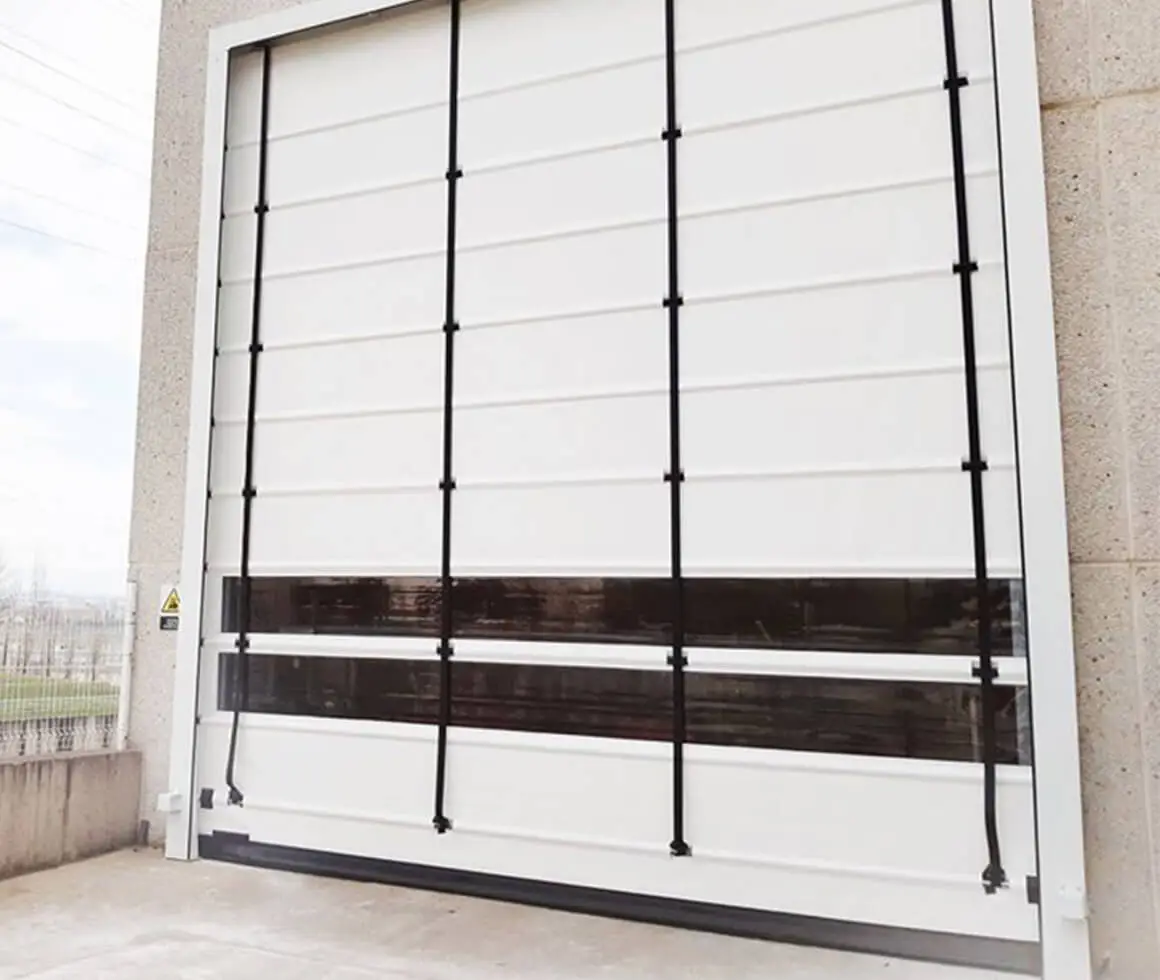

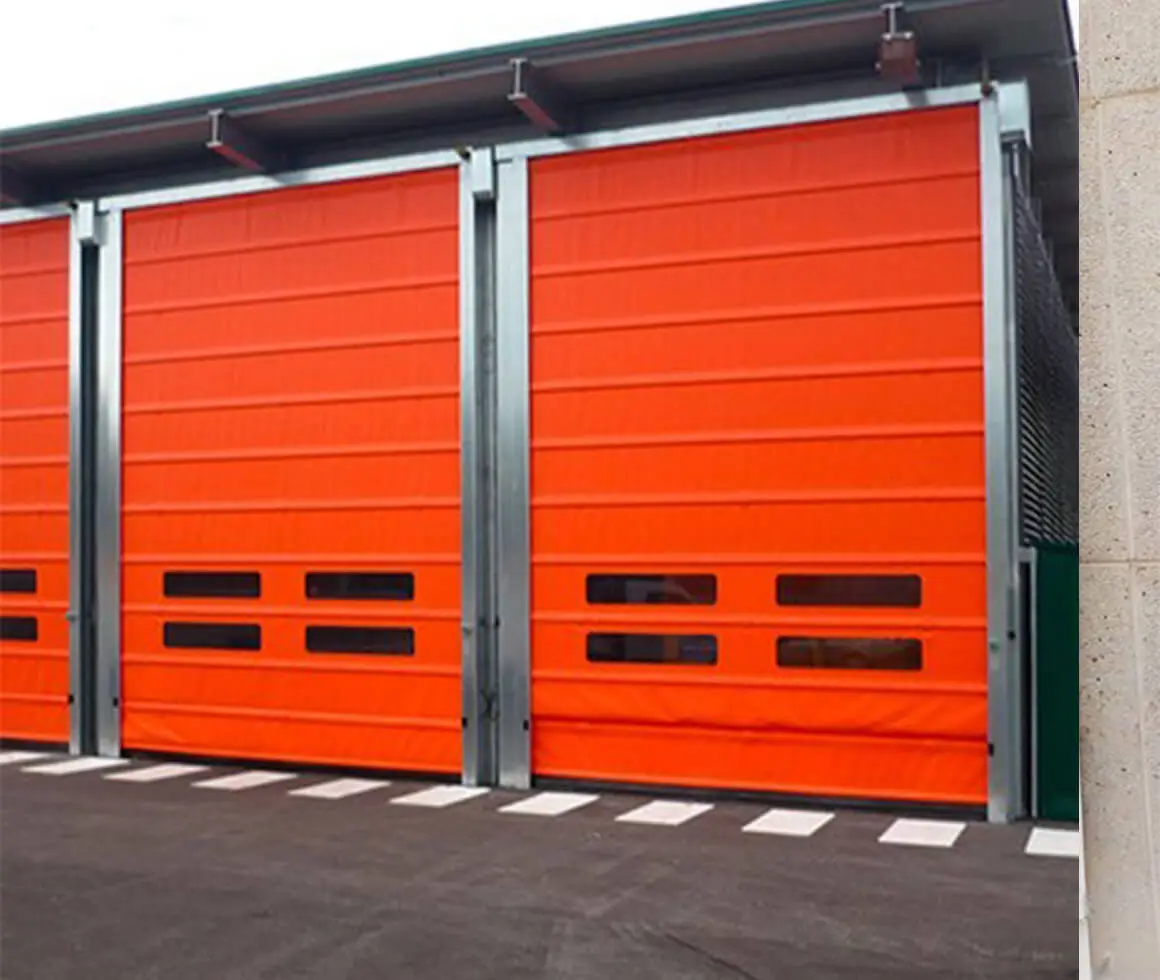

This PVC stacking door is not only functional but also aesthetically pleasing, adding a modern touch to any facility. Whether you need to improve safety, increase efficiency, or enhance the overall appearance of your workspace, it is one perfect choice.
Feel free to contact us for further queries.
CI Industry, a prominent name in the production of High Speed PVC Stacking Doors, is committed to providing cutting-edge and high-quality products to address the varied requirements of commercial and industrial customers. Get in touch with us to choose from a variety of sizes and customization options that will seamlessly fit your home's design.
Product Name | High Speed PVC Stacking Door |
Maximum Door Size | W12000mm * H10000mm |
Operation speed | 0.6m/s-1.2m/s, adjustable |
Operation way | Remote control, wall switch, Magnetic loop, Radar, Pull Rope Switch, Signal lamp |
Frame Structure | 2.0mm Galvanized steel / 304 Stainless steel |
Curtain Material | SIOEN High density polyester fiber sheet |
Motor Power | 0.75kw - 5.50kw |
Control Box | IP55 Box with PLC&INVERTER, Pre-wired and factory tested |
Safety Performance | Infrared photo sensor, Safety airbag edge protection |
Tolerance Frequency | 2 times/min, Inverter opening 2500-3000 times/day |
Wind Resistance | Class 12 (Beaufort Scale) |
Working Temperature | -25 °C to 65 °C |
Warranty | 1 year for electric parts, 5 years for mechanical parts |
Description: High Speed PVC Stacking Doors
Maximum Size: 12000mm x 10000mm
Opening Speed: Up to 1.2m/s, variable
Temperature Resistance: -25°C to +65°C
Wind Resistance: Available up to Class 8 (Beaufort Scale)
Weight: Canvas 950g / M2
Steel Construction: Galvanized Steel with Full Cover
Vision Window: Available
