Installation of the single line garage door panel from CI Industry is quick and convenient, requiring minimal disruption to your daily routine. Its easy operation and reliable performance make it a hassle-free addition to your home.
Contact us to choose from a variety of sizes and customization options.
| Model | H-line/Horizontal line/Single line |
| Section height range | 430mm-610mm, adjustable |
| Production | The panels are made by a self-designed continuous line, flat surface, no blistering in strong sunlight, hard adhesion between steel sheet and foam(extra glue sprayed) |
| Equal length | The panels length of each door are exactly the same, which is attributed to the smart-designed cutting unit. |
| Pre-drilling holes | To save installation labor and time, we can pre-drill panel holes automatically. |
| Protection film | The plastic films are applied to the bending edge precisely, you can take off the film by finger, needn't the help of blades and damage the painting. |
| Material | Steel or Aluminium |
| Insulation | PUR (polyurethane) and PIR(polyisocyanurate, fire retardant, oxygen index 26 ), CFC free |

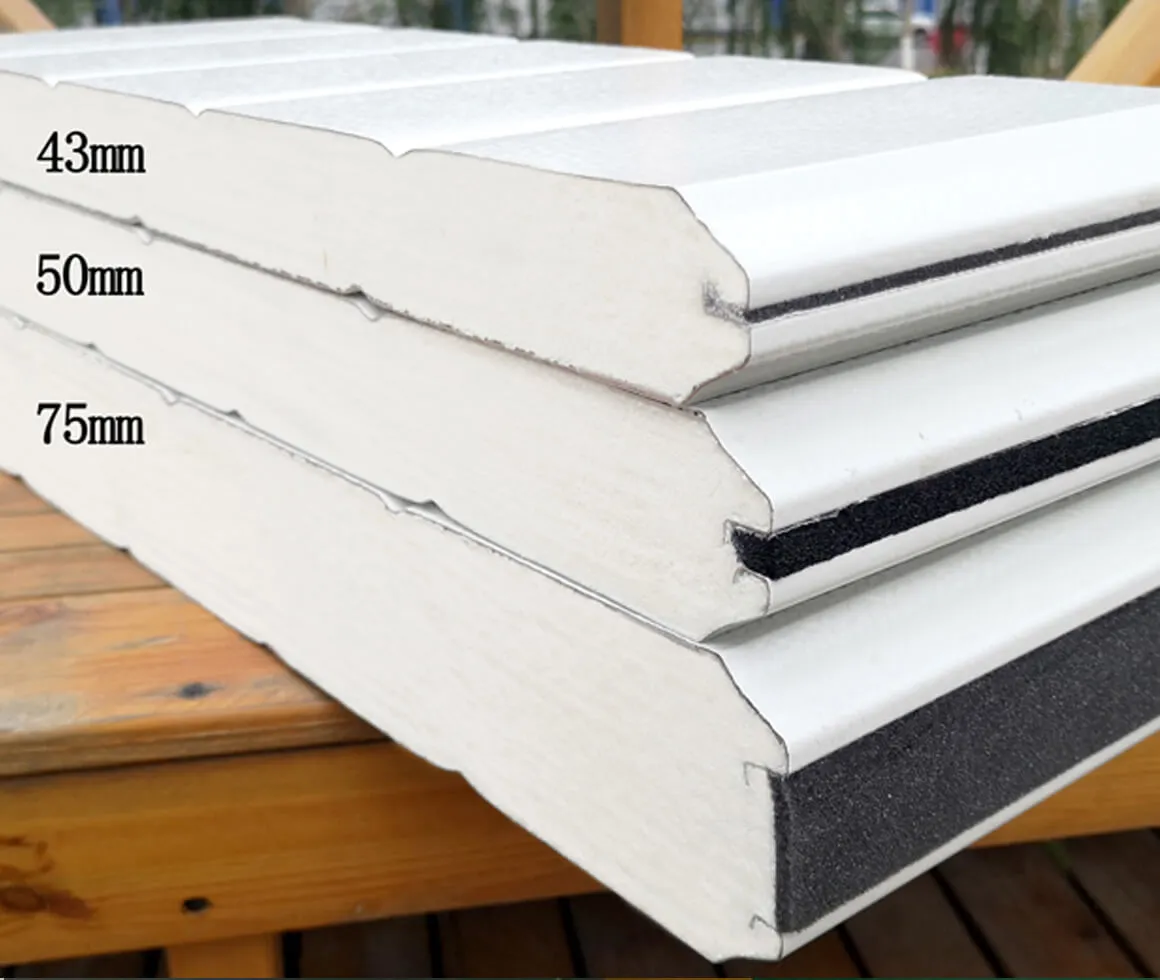

| Thickness | 40mm, 43mm, 50mm, 75mm |
| Foam density | 45 kgs/cbm |
| Certificate | CE |
| Warranty | 10 years |
The sealing fixed at botton instead of top, won't fall out, better insulation effect.
With through reinforcement steel stripe, the screws can hold stronger.
