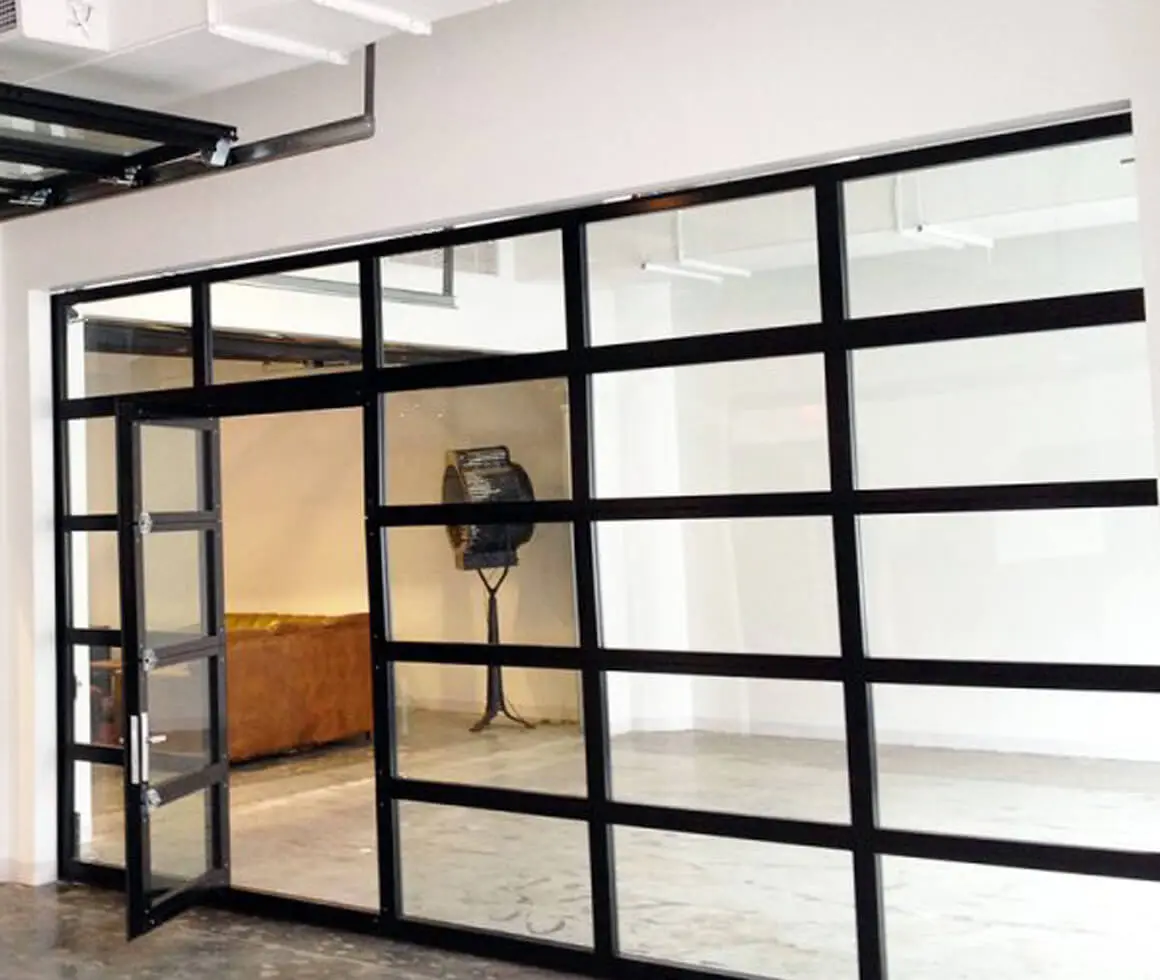

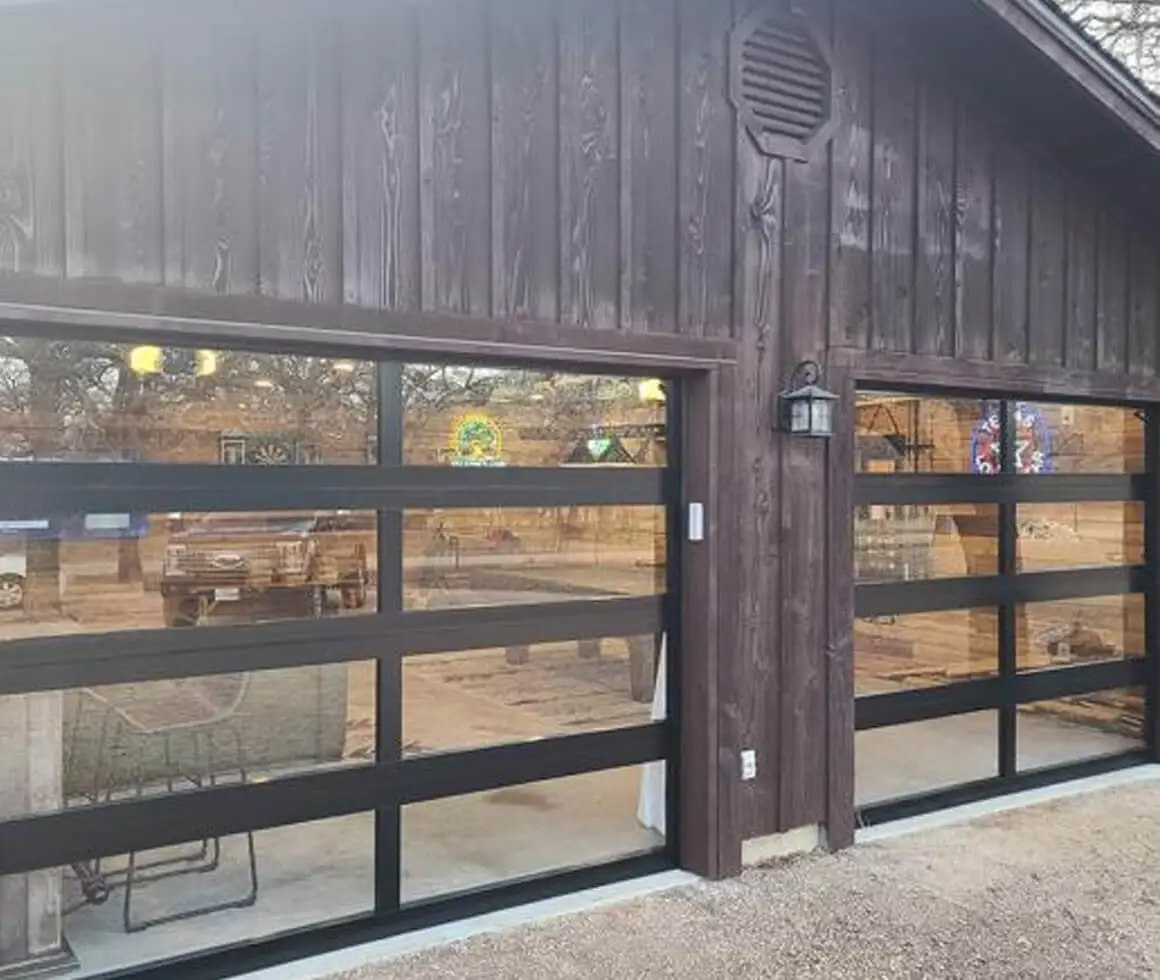

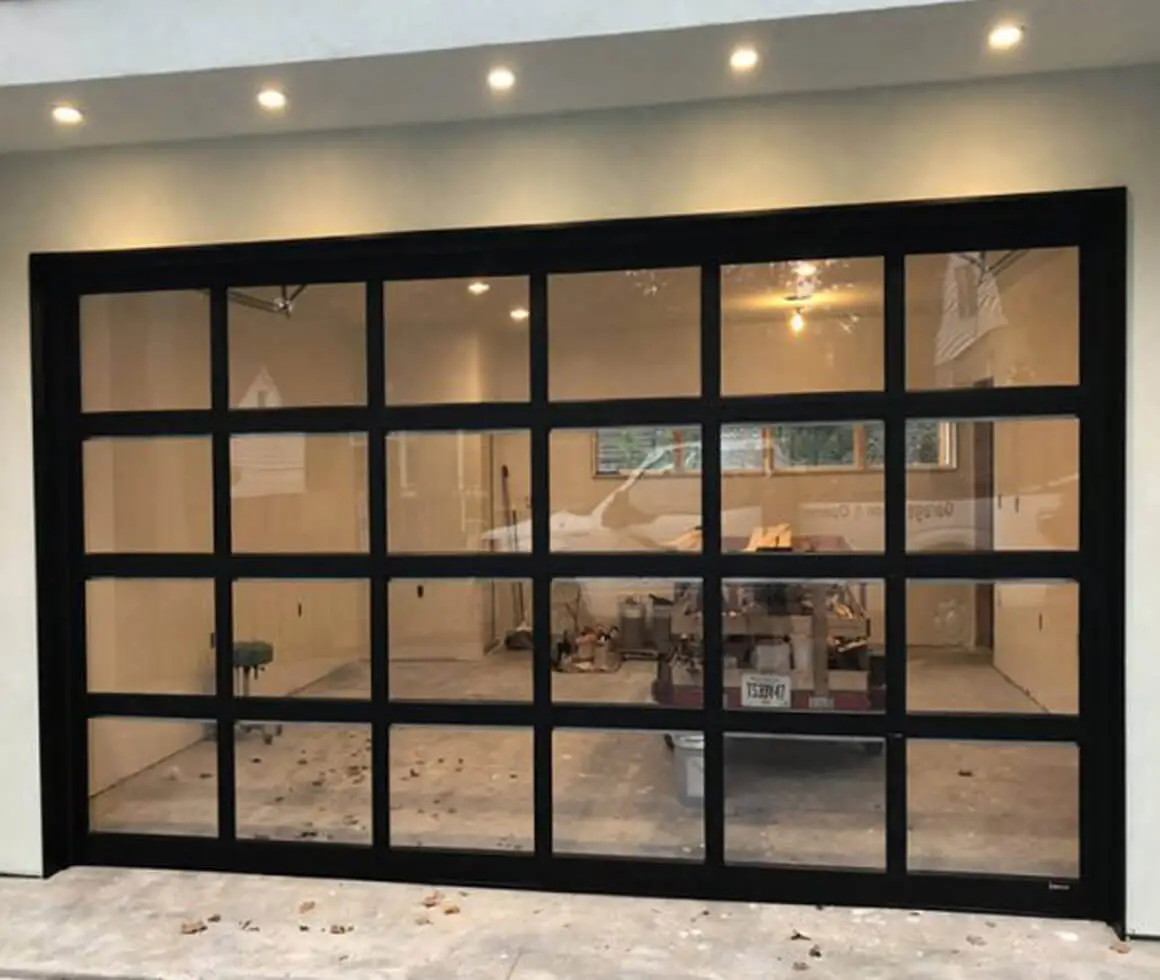

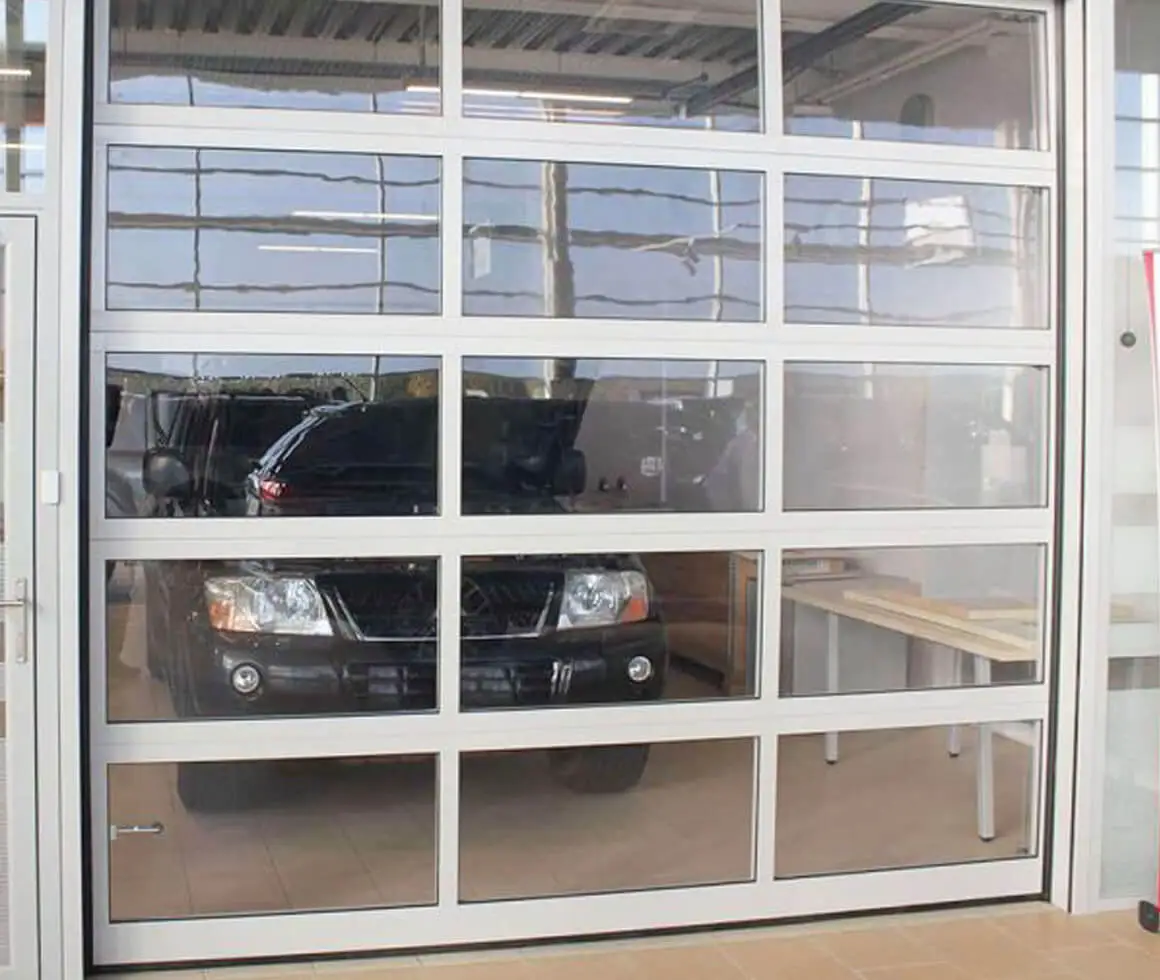

Transform your garage into a beautiful and functional space with this Aluminum Clear Glass Garage Doors. The contemporary design instantly elevates the look of your home, brighten up your garage space and create a more inviting atmosphere.
Feel free to contact us for further queries.
CI Industry, a top-tier manufacturer of Aluminum Clear Glass Garage Doors, is committed to delivering innovative and high-quality products to address the diverse needs of commercial and industrial clients. Reach out to us to choose from a variety of sizes and customization options that will seamlessly fit your home's design.
| Aluminum Finish | Powder Coated & Anodized |
| Frame Thickness | 1-3/5'' & 2'' Extruded Aluminum Frame |
| Panel | Finger Protection & Non Finger Protection |
| Frame Color | White & Black (standard) Any other colors could be customized |
| Glass | 1/5'' single layer & 1/5'' + 1/5'' double layer |
| Insulation | PU insulation is available for customization |
| Hardware | Precision rollers, High carbon torsion spring, safety brackets |
| Track Radius | R12'' 2'' or R15'' 3'' track |
| Track Lift | Standard Normal lift (High lift, Vertical Lift） |
| Pedestrian door | Available |
Max 24’’ section available for R12’’ track
For the strength and durability of the door, the total length could add up to 20’ wide
Maximize the amount of sunlight and make your garage or other spaces seems bigger
Insulated glass garage door panels are available for increased energy efficiency.
| |
| 1. Vertical track | 13. Cable break safety device |
| 2. Vertical angle | 14. Bottom profile |
| 3. Cylindrical shaft | 15. Panoramic panel |
| 4. Spring safety device | 16. Bottom seal |
| 5. Drum | 17. Side seal |
| 6. U-shaped bracket | 18. Top profile |
| 7. Counterbalancing mechanism (torsion spring) | 19. Top seal |
| 8. Steel coupler | 20. Perforated side cap |
| 9. Internal support bracket | 21. Full-vision impact-resistant filling |
| 10. Top support with roller holder | 22. Spring bumper |
| 11. Side support with roller holder | 23. Universal mounting bracket for horizontal tracks |
| 12. Hinge | |
